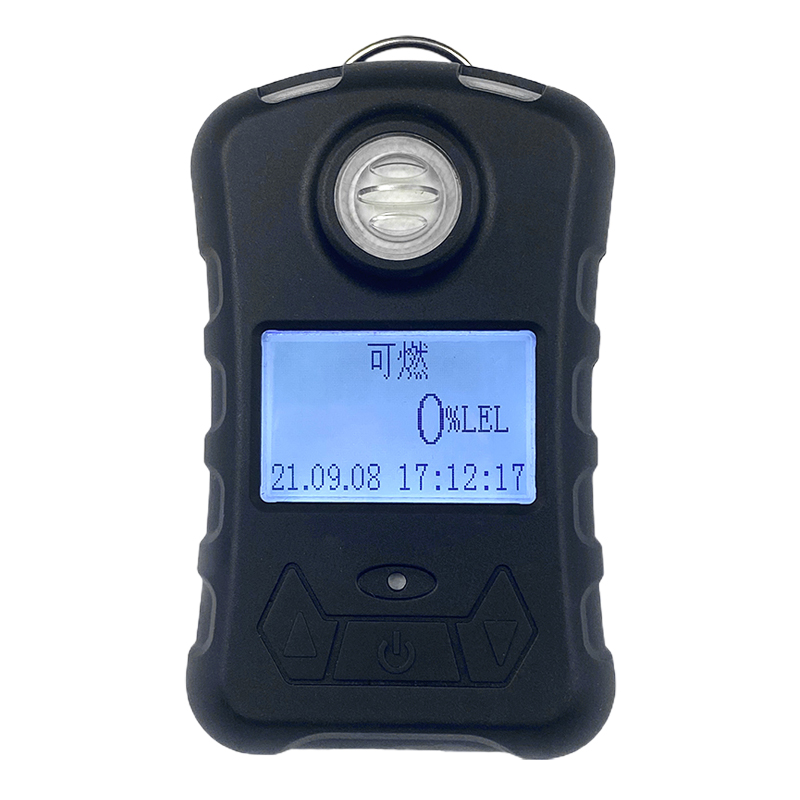

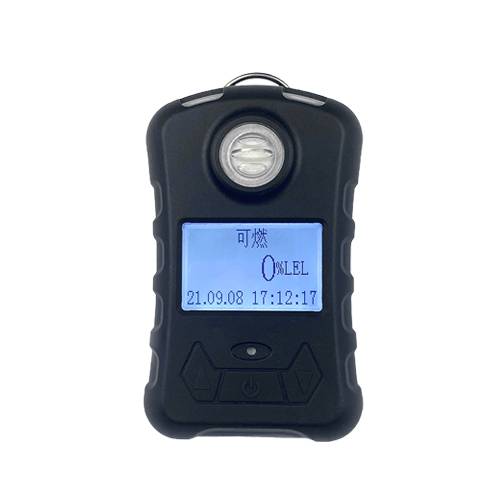

Portable Flammable Gas Detector
The SK-GP10 is an intrinsically safe flammable gas detector designed for on-site industrial inspections. It enables fast detection, real-time alarms, and traceable gas data, making it an indispensable safety tool for workers. Key features include high-precision detection, multi-level alarms, portability, and long battery life.
Product Specifications
Sampling Method: natural diffusion
Detection Range: PPM, %LEL, %VOL
Accuracy: ±3% FS
Response Time: T<60s(EX/CO/02/H2S<30s)
Operating Temperature: flammable gas-20°C~70°C
Toxic Gas & Oxygen: -10°C~55°C"
Operating Humidity:<95%RH(non-condensing)
Operating Voltage: DC3.7V锂电池2000mAh
Alarm Type: 声音, 视觉和振动报警
Protection Rating: IP66
Explosion-proof Rating: Ex ib IIC T4 Gb
Dimensions: 145*70*35 mm
Weight: 250g
Battery Life: >8h
ProductFeatures

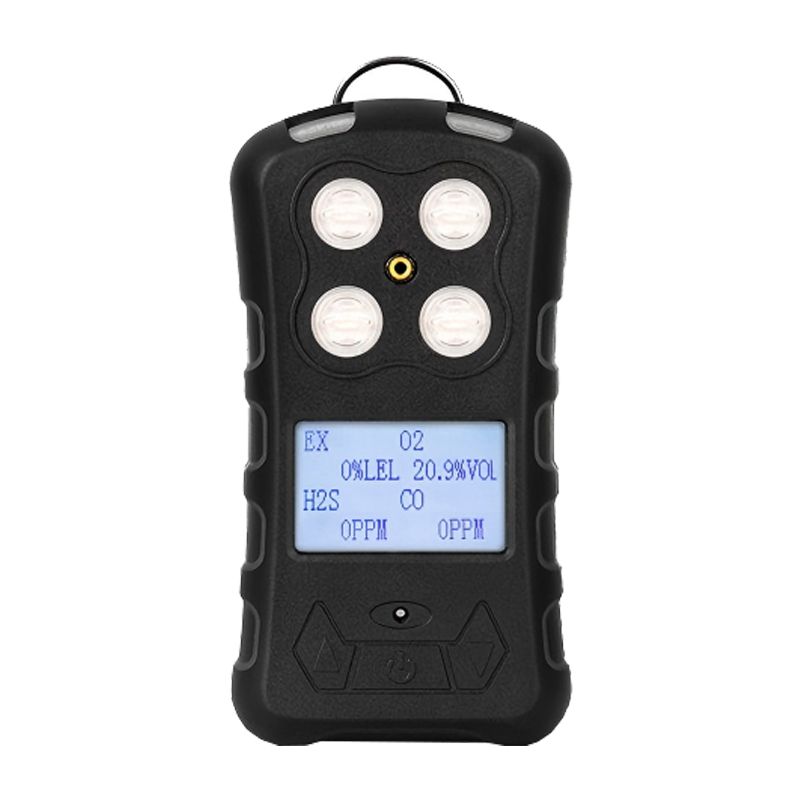

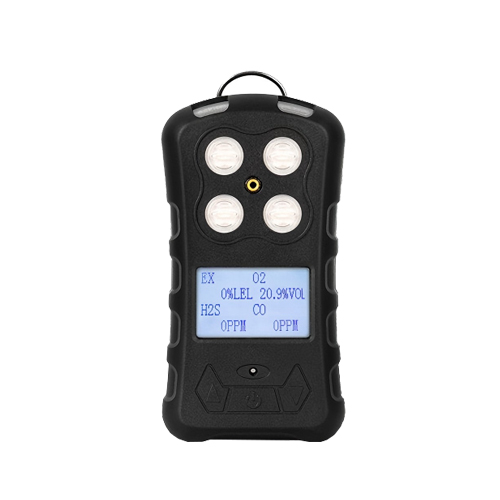

Portable Multi-Gas Detector
The SK-GP40 is a portable 4-in-1 gas detector, a standard emergency detection device in the industrial safety field. Designed for confined-space work and emergency responders, it detects four core gases: flammable gas (LEL), carbon monoxide (CO), hydrogen sulfide (H2S), and oxygen (O2).
Product Specifications
Sampling Method: natural diffusion
Detected Gas: flammable gas, toxic gas, oxygen和TVOC
Detection Principle: PPM, %LEL, %VOL, mg/m3
Accuracy: 5%FS。(爆炸性气体/一氧化碳/oxygen/硫化氢<3%FS)
Response Time: T<60s(EX/C0/02/H2S<30s)
Operating Temperature: flammable gas-10°C~55°C
Toxic Gas & Oxygen: -10°C~55°C
Operating Humidity:<95%RH(non-condensing)
Operating Voltage: DC3.7V锂电池2000mAh
Alarm Type: 声音, 视觉和振动报警
Protection Rating: IP66
Explosion-proof Rating: Ex ib IIB T4 Gb
Dimensions: 145*70*35mm
Weight: 250g
Battery Life: >8h
ProductFeatures

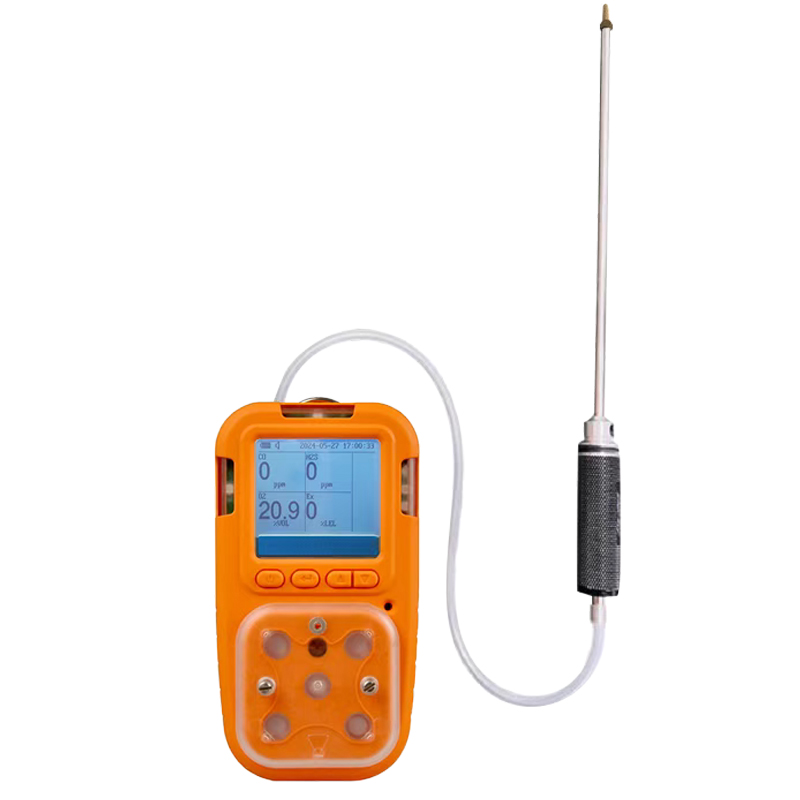

Portable Pump-Suction Gas Detector
The SK-GP43 portable pump-suction gas detector is a mobile gas detection device with a built-in sampling pump. By actively drawing gas from the environment being tested, it quickly and accurately detects the concentration of flammable, toxic, or oxygen gases.
Product Specifications
Detected Gas: flammable gas, 有毒有害气体, oxygen和
Detection Principle: 电化学, 红外(IR), 催化燃烧, 热导,
Detection Method: 泵吸式/扩散式
Accessories: sampling probe
Measurement Range: 0-1000 ppm;0-100%LEL;0-100%VOL
Measurement Accuracy: ≤3% FS
Response Time: flammable gas<30s(T90), toxic gas<60s
Alarm Type: 声光振动报警，带状态指示
Setting Method: button operation
Power Supply: DC 3.7V
Battery Type: 2500mAh rechargeable lithium battery
Charging Time: 6-8h
Standby Time: ≥8h
Pressure Range: 86 kPa-106 kPa
Explosion-proof Rating: Ex ib IIB T4 Gb
Protection Rating: IP66
Housing Material: ABS engineering plastic
Overall Dimensions: 145*80*65 mm (excluding sampling probe)
Product Weight: 300g
ProductFeatures

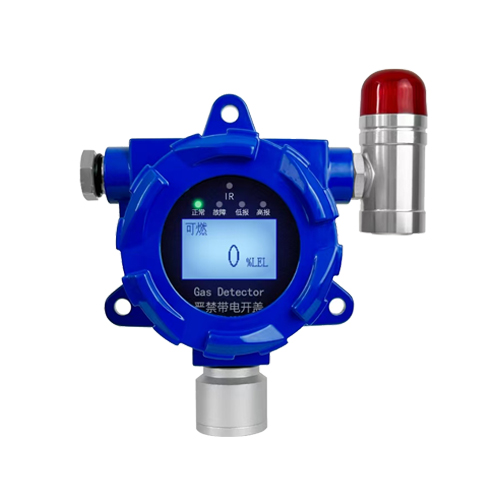

Fixed Flammable Gas Detector
The SK-GF10 is a fixed monitoring device designed for flammable gas leak issues at industrial sites, providing 24-hour continuous and precise monitoring, tiered early warning, and remote centralized management to prevent explosions and ensure industrial production safety. With "real-time monitoring, tiered warning, remote networking and stable operation," it serves as a core safety line for high-risk industries such as petrochemical, gas, and metallurgy.
Product Specifications
Detected Gas: flammable gas, toxic gas
Detection Method: natural diffusion
Detection Range: PPM, %LEL, %VOL, mg/m3
Response Time: LEL<30s(T90), toxic gas<60s
Setting Method: button or remote control
Power Supply: DC24±15%
Output Signal: 4-20mA/RS485
Transmission Distance:<1000m
Operating Temperature: -20°C~+55°C
Relative Humidity: ≤95%Rh(non-condensing)
Explosion-proof Rating: Ex db IIC T6 Gb/Ex tb ⅢIC T80° CDb
Protection Rating: IP67
Housing Material: die-cast aluminum
Dimensions: 175X185X90mm
Weight:<1000g
Cable Entry: M20X1.5或G1/2
Installation Method: wall-mounted
Display Type: digital tube or LCD display
ProductFeatures

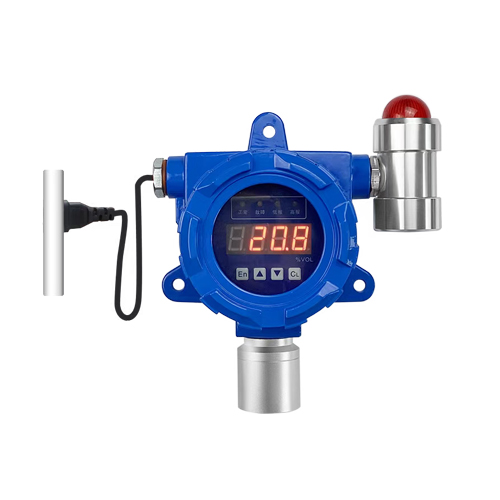

Standalone Gas Detector
The SK-GF12 220V is a plug-and-play industrial safety device integrating detection, display, and alarm functions. Designed for standalone gas monitoring in small-scale settings, it performs comprehensive monitoring and early-warning tasks without an external controller, making it the ideal choice for small and medium detection sites.
Product Specifications
Detected Gas: flammable gas，toxic gas
Sampling Method: natural diffusion
Detection Range: PPM, %LEL, %VOL, mg/m3
Response Time: LEL<30s(T90), toxic gas<60s
Setting Method: button or remote control
Power Supply: DC24±15%
Output Signal: 4-20mA/RS48
Transmission Distance:<1000m
Operating Temperature: -20°C~+55°C
Explosion-proof Rating: Ex db IIC T6 Gb/Ex tb ⅢC T80° CDb
Protection Rating: IP67
Housing Material: die-cast aluminum
Dimensions: 175X185X90mm
Product Weight:<1000g
Connection Thread: M20x1.5 或G1/2
ProductFeatures

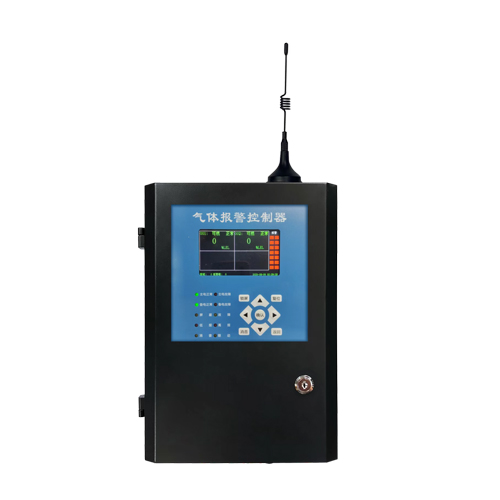

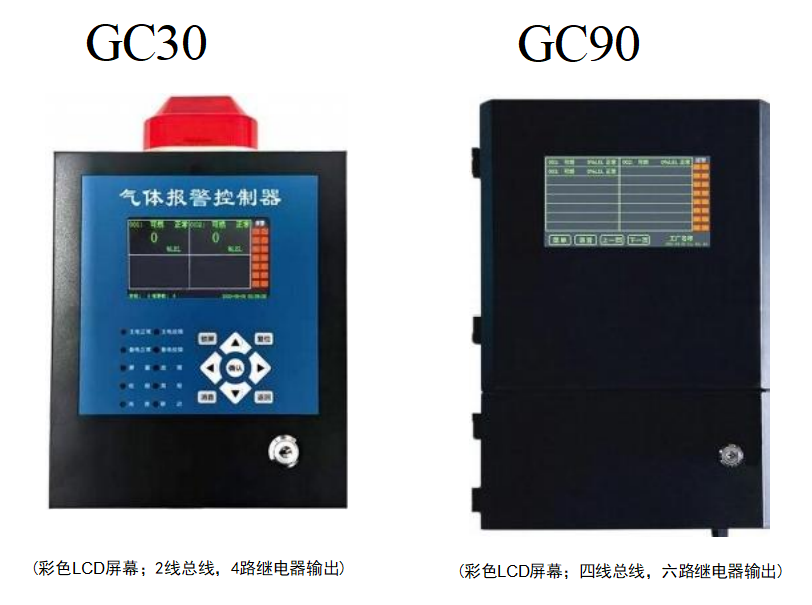

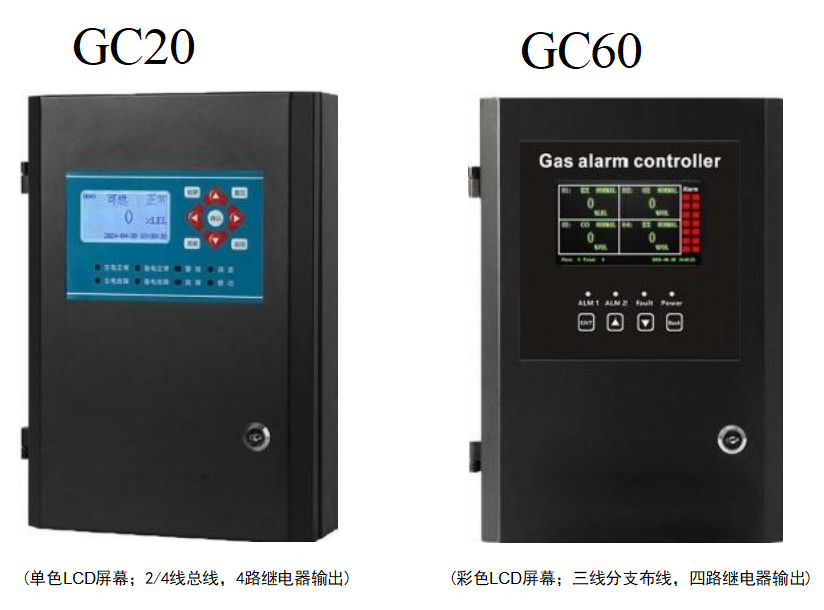

Gas Alarm Controller
The GC30/GC60/GC90 is the core control and management unit of the industrial gas detection system, providing centralized management of multiple gas detectors for real-time centralized monitoring, tiered alarms, intelligent linkage control, and data traceability. It is an essential device for building a gas safety protection system.
Product Specifications
Display: 4.3-inch LCD color display
Setting Method: button/touchscreen
Power Supply: 交流110-240V,50Hz/60Hz
Relay Output: 4(或6)通道被动继电器输出，触点额定值 10A/220VAC
Operating Temperature: -10°C 至50 °C
Measurement Accuracy:<3%F.S.
Relative Humidity:<95%(non-condensing)
System Power Consumption: 最大10W( without external devices connected)max. supported
Number of Detectors: bus connection(RS485)256个 branch wiring(4-20mA)32个
Connection Method: 四线总线三线branch wiring
Communication Interface: 4-20mA/RS485
Digital Upload: RS485Modbus-RTU
Alarm Type: two-level alarm (user configurable)
Alarm Indication: 指示灯, 显示屏, 蜂鸣器实现实时警报
Storage Capacity: stores up to 20,000 alarm event records
Installation Method: wall-mounted尺寸：245*340*90mm

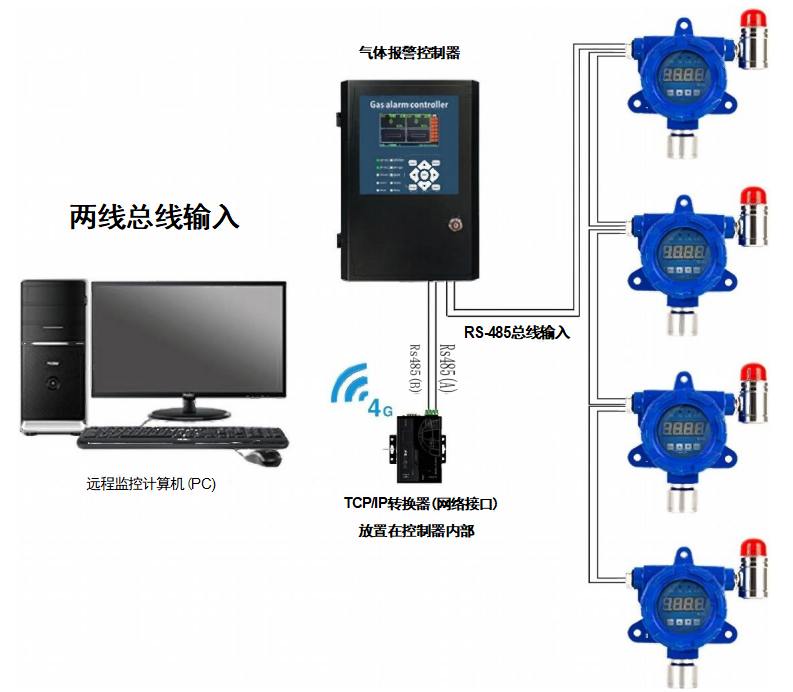

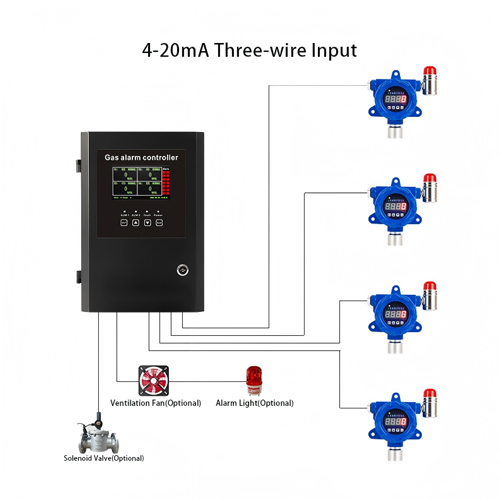

Detector Installation Diagram

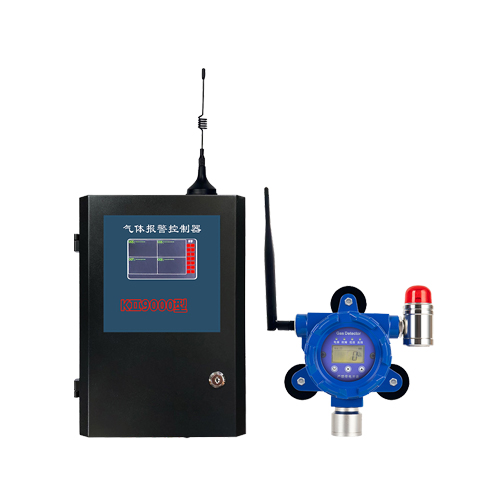

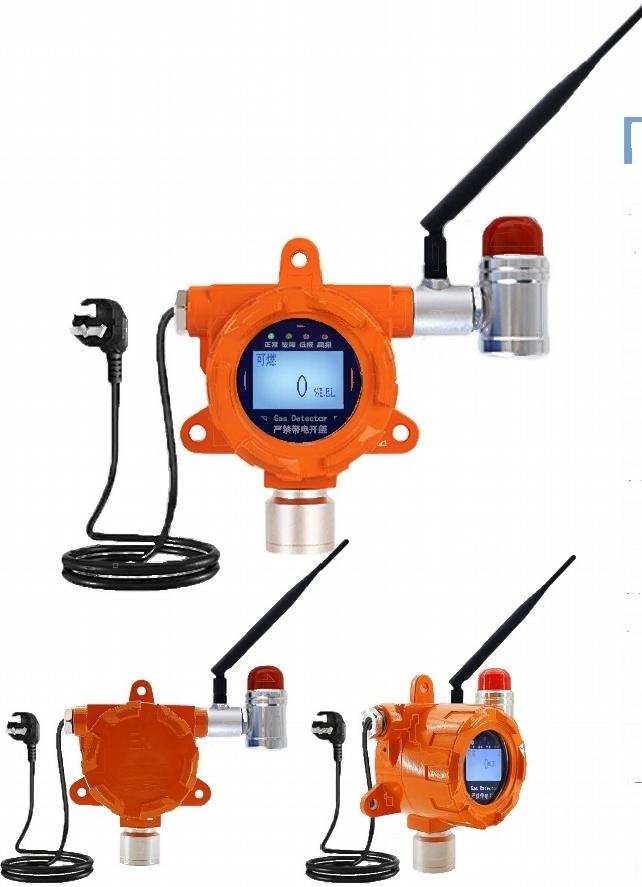

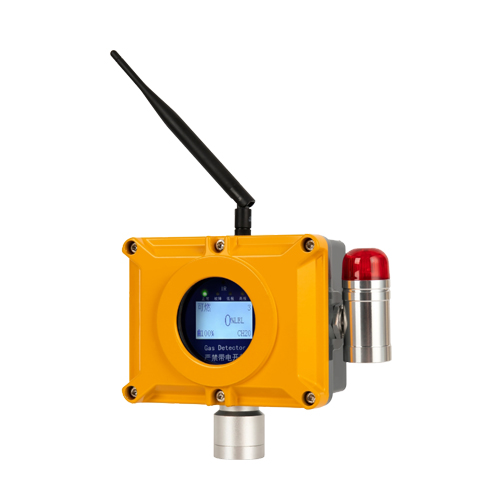

LoRa Wireless Gas Detector
The SK-GW10 industrial-grade gas monitoring device is equipped with a dedicated 4G/LoRa spread-spectrum communication module. Suitable for large plants, multi-point areas, and environments with complex obstructions, it enables long-range, low-power, low-cost centralized monitoring over a wireless network.
Product Specifications
Detected Gas: flammable gas, toxic gas
Sampling Method: natural diffusion
Detection Range: PPM, %LEL, %VOL, mg/m3
Response Time: LEL<30s(T90), toxic gas<60s
Setting Method: button or remote control
Power Supply: DC24±15%
Output Signal: Lora/4G
Transmission Distance:<1000m
Operating Temperature: -20°C~+55°C
Relative Humidity:<95%(non-condensing)
Explosion-proof Rating: Ex db IICT6 Gb/Ex tb ⅢIC T80° CDb
Protection Rating: IP67
Housing Material: die-cast aluminum
Dimensions: 210x185×90 mm
Product Weight:<1000g
Connection Thread: M20x1.5 或G1/2
ProductFeatures
Magnetic-Mount Fixed Gas Detector
The SK-GW20 industrial-grade gas monitoring device integrates low-power LoRa networking technology, a magnetic mounting device, and long-life battery power. Designed for scenarios without power supply or network connectivity that require flexible deployment, it supports centralized monitoring and is ready for immediate use once connected.
Product Specifications
Detected Gas: flammable gas, toxic gas
Detection Principle: 催化燃烧, 红外, 电化学
Detection Mode: diffusion type
Measurement Range: 0-100%LEL, PPM
Measurement Accuracy:<3% FS。
Response Time:<30s
Alarm Type: 声音和视觉报警，状态指示灯
Display Mode: LCD显示屏
Power Supply: 主电池高能量密度电池
Output Signal: Lora/4G
Explosion-proof Rating: Ex db ia IIB T4 Gb
Operating Temperature: -20°C至+55°C
Relative Humidity: 95%(non-condensing)
Pressure Range: 86 kPa-106 kPa
Product Weight: 2000g
Dimensions: 206*218*76mm
Protection Rating: IP66
Signal Output: 4G,LoRa无线传输
Battery Life: 3年(24h连续使用)
Installation Method: 背板磁吸安装
ProductFeatures

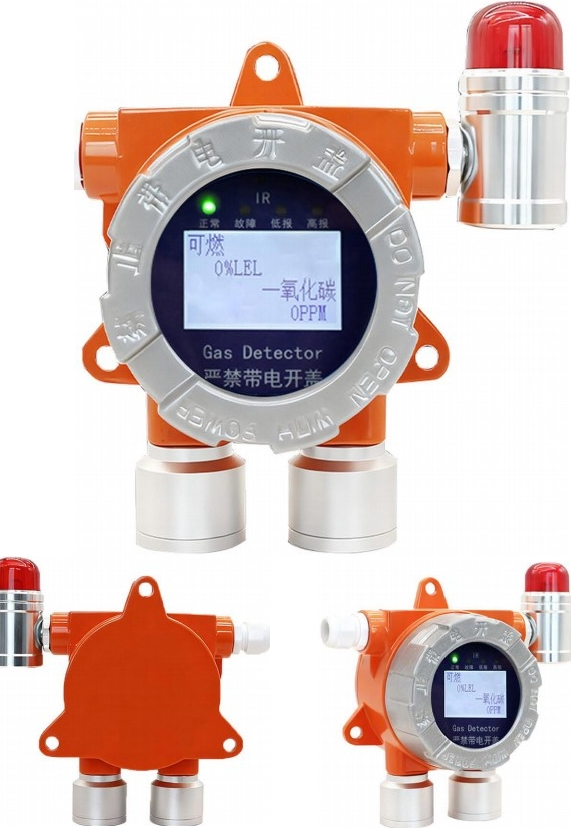

Fixed Dual-Gas Detector
The SK-GF20 industrial-grade fixed gas monitoring device is equipped with two independent sensors, designed for high-risk scenarios with multiple coexisting gases. It provides 24-hour synchronized precision monitoring, tiered early warning, and centralized management of two gases, reducing protection costs and deployment complexity in multi-gas environments.
Product Specifications
Detection: detects concentration of 1-2 gases
Detected Gas Type: flammable gas, toxic gas检
Detection Mode: diffusion type
Measurement Range: PPM, %LEL, %VOL, mg/m3
Measurement Accuracy: +3%FS。
Response Time: flammable gas<30s(T90), toxic gas<60s
Alarm Type: audible and visual alarm
Power Supply: DC24±15%
Output Signal: RS485
Explosion-proof Rating: Ex db IIC T6 Gb
Operating Temperature: -20°C至+55°C
Relative Humidity:<95%(non-condensing)
Protection Rating: IP66
Dimensions: 178x182x118 mm
Product Weight:<1000g
Connection Thread: M20X1.5或G1/2
Installation Method: wall-mounted
Housing Material: die-cast aluminum
ProductFeatures

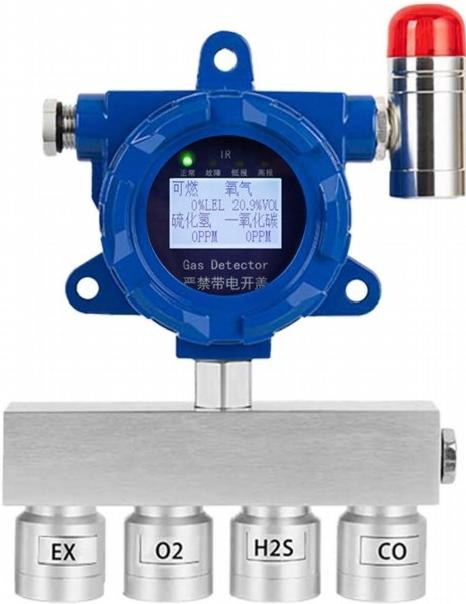

Fixed Multi-Gas Detector
The SK-GF40 industrial-grade fixed gas monitoring device integrates multiple independent sensors, designed for complex and high-risk scenarios involving multiple coexisting gases. It provides 24-hour synchronized precision monitoring, tiered early warning, and centralized management of 1 to 4 gases, reducing deployment costs and simplifying maintenance for multi-gas protection.
Product Specifications
Detection: detects concentration of 1-4 gases
Detected Gas Type: flammable gas, toxic gas
Detection Mode: diffusion type
Measurement Range: PPM, %LEL, %VOL, mg/m3
Measurement Accuracy: +3%FS。
Response Time: flammable gas<30s(T90), toxic gas<60s
Alarm Type: audible and visual alarm
Power Supply: DC24V±15%
Output Signal: RS485
Explosion-proof Rating: Ex db IIC T6 Gb
Operating Temperature: -20°C至+55°C
Relative Humidity:<95%(non-condensing)
Protection Rating: IP66
Dimensions: 190x 245×90 mm
Product Weight:<2.5KG
Connection Thread: M20x1.5或G1/2
Installation Method: wall-mounted
Housing Material: die-cast aluminum
ProductFeatures
