Product Features
Powered directly by the 4-20mA current loop, no external power supply required
Low voltage-drop design with optimized power management, does not affect the operation of transmitters or the DCS system
0.8-inch wide-viewing-angle LCD display, readable clearly from 8 meters away
Anti-glare backlit LCD, black-on-white display, clear in daylight and bright at night
Intrinsically safe explosion-proof, isolated explosion-proof, and dust-area explosion-proof
IP67 Protection Rating

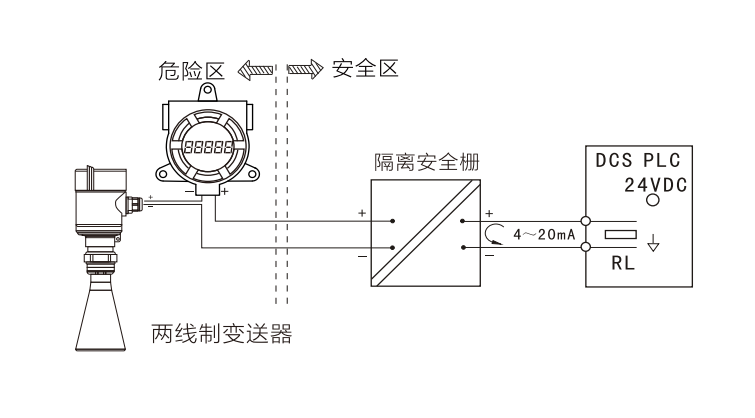

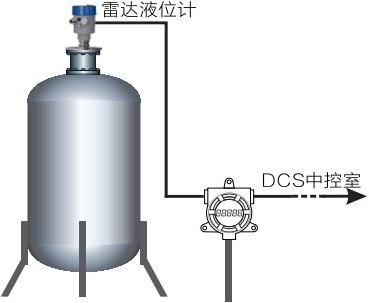

Application Diagram
Application Range
Local display of level, temperature, and pressure at large tank farms in petrochemical, refined-oil storage, and pharmaceutical synthesis facilities.
Field display of flow, pressure, temperature, and level for overhead piping at municipal boiler plants, thermal power plants, and smelting/processing facilities.
Technical Specifications
| Operating Current | DC4-20mA |
|---|---|
| Minimum Startup Current | 2mA |
| Maximum Rated Current | 40mA |
| Maximum Withstand Voltage | DC50V |
| Effective Display Range | -19999~50000 |
| Display Accuracy | ±0.1%±1 digit |
| Overall Power Consumption | Less than 0.5W |

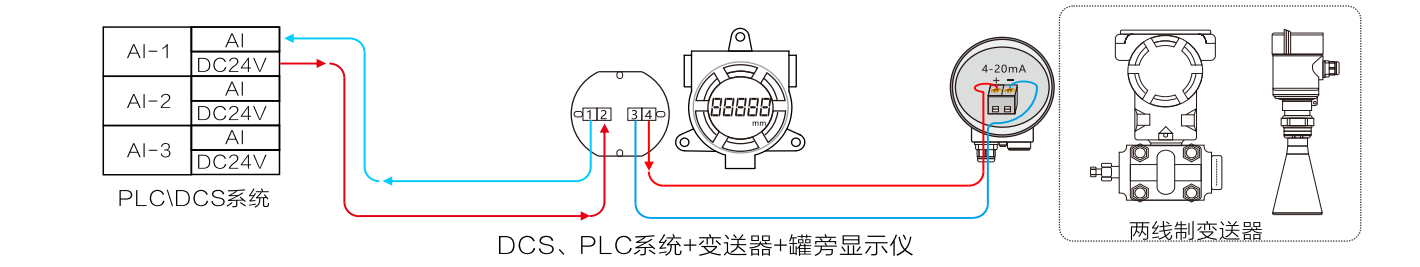

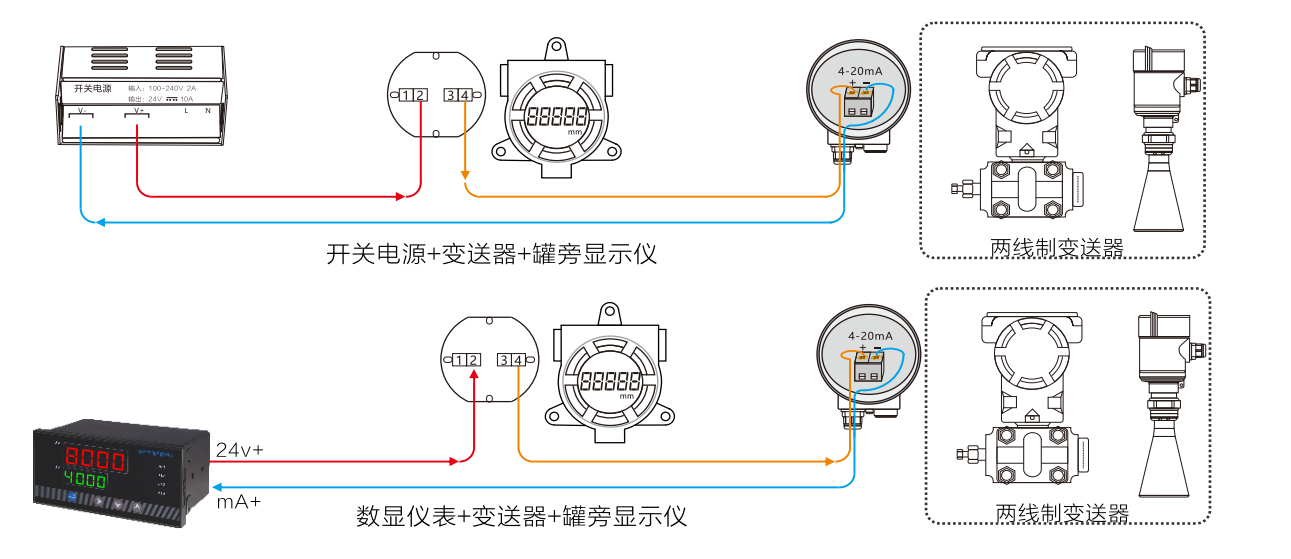

Wiring and Connection

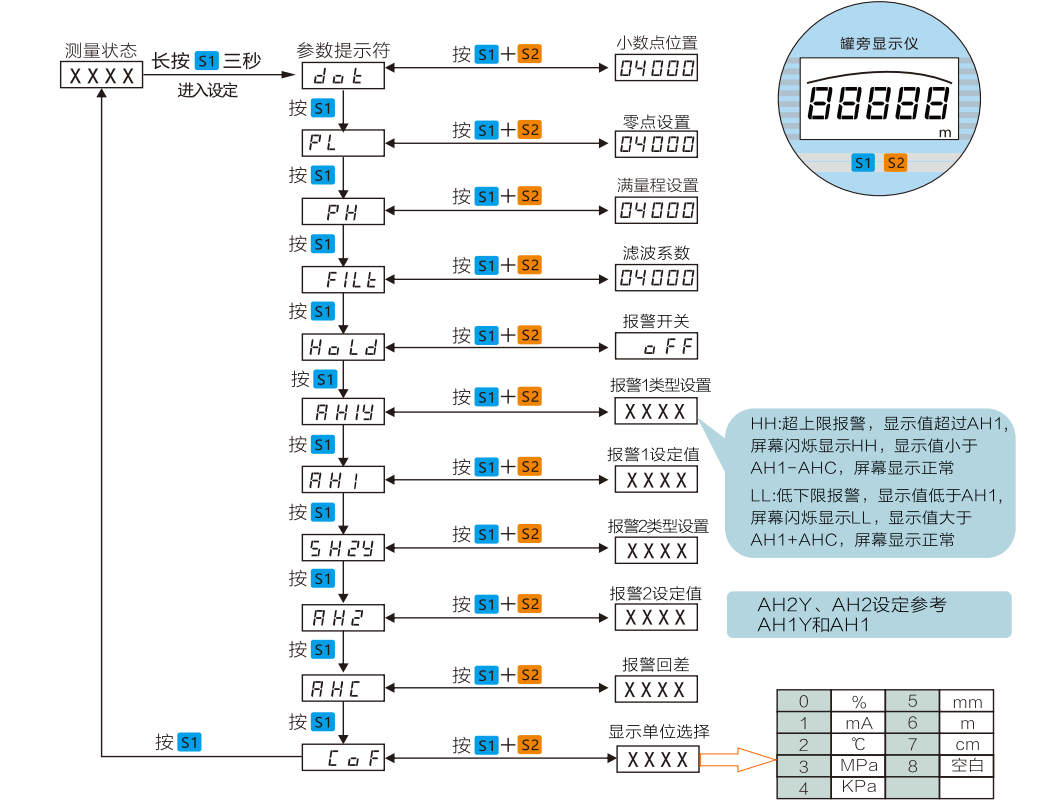

Display Range Setting

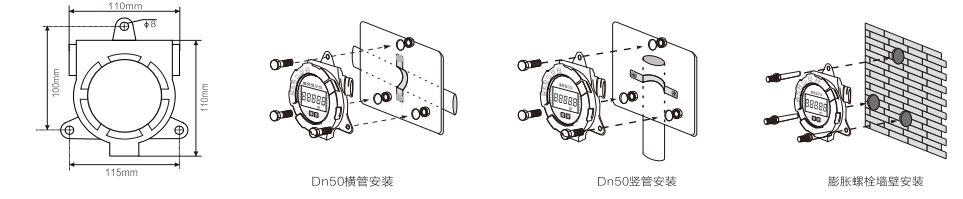

Installation and Mounting
