Product Overview

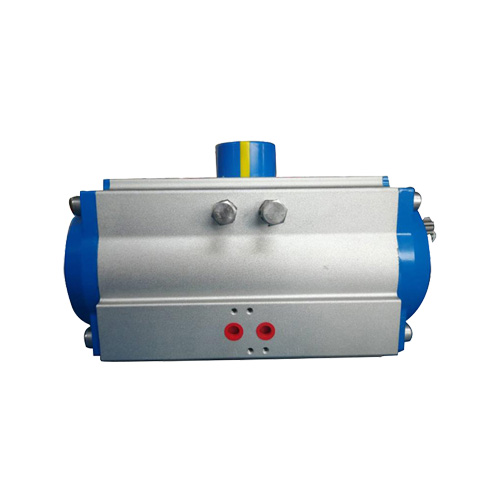

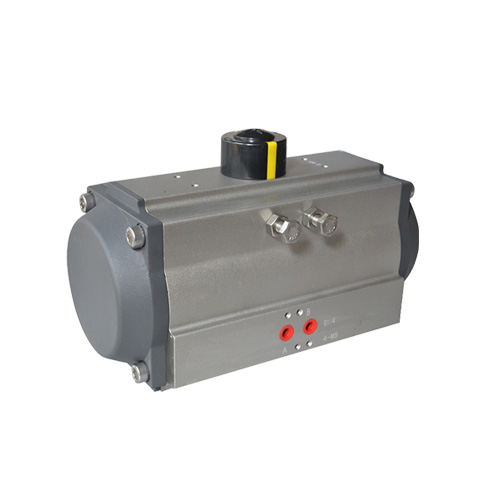

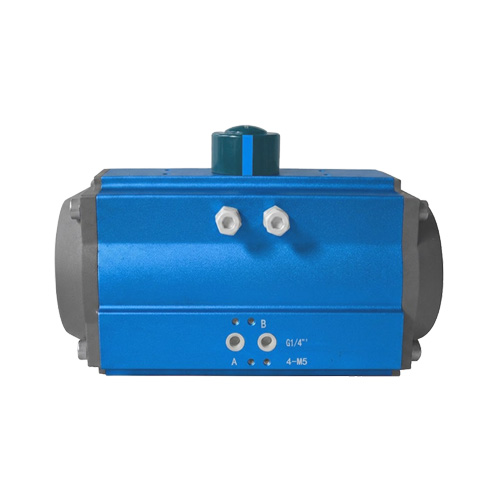

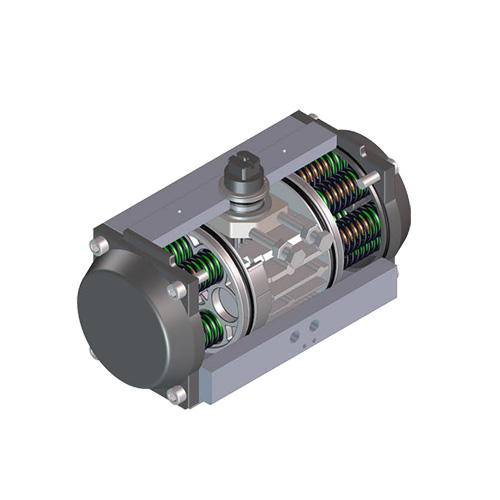

The SKE-R Series is a rack-and-pinion actuator available in 16 sizes, offered in both spring-return and double-acting models. This series is the most versatile drive unit for quarter-turn valves such as ball valves, butterfly valves, and plug valves.SKE-R series uses an extruded aluminum (ASTM 6005) cylinder with a finely ground interior surface, with advanced anti-corrosion treatment applied both internally and externally, giving low cylinder friction, long service life, and strong corrosion resistance. Its core internal mechanical principle is that a pair of symmetrically arranged pistons move synchronously and linearly under air pressure, using the rack on the inside of the pistons to drive the central pinion gear shaft to rotate 90°, producing torque output.
Why Choose This Product
Materials on Par with Leading International Brands: The SKE-R series actuator cylinder is made of high-strength extruded aluminum alloy (6005-T5), with a finely ground inner wall treated with advanced anti-corrosion technology, giving an extremely low friction coefficient.
Outstanding Axial Balance and Lifespan: Composite bearings and guide rings are fitted to the back of the dual-piston rack, effectively offsetting lateral loads and delivering a working life of over a million cycles, making it a complete replacement for equivalent Air Torque products.
Seamless Physical Replacement: Bottom mounting holes comply with ISO 5211/DIN 3337 standards, and the top and air-supply ports fully comply with NAMUR specifications, enabling "no-modification" in-place interchange with Air Torque or Bettis field actuators, significantly reducing procurement costs and shortening delivery times.
Core Advantages and Features:
Corrosion Resistant
Safe and reliable, with an extruded aluminum (ASTM 6005) cylinder, finely ground interior surface, advanced anti-corrosion treatment applied both internally and externally, stainless steel fasteners, low cylinder friction, long service life, and strong corrosion resistance.
Rugged and Durable
Dual-piston rack-and-pinion design, compact structure, symmetrical mounting positions, easy reversal of output shaft rotation direction, combination preloaded coated springs, fast action, and long service life.
High-Precision Output
High-precision gears and rack with minimal backlash and high accuracy, delivering high output power. Composite bearings and guide rings are fitted to the back of the piston rack for accurate action and low friction.
International Standard Interface
Uses internationally standardized dimensions: output shaft slot and threaded holes; top mounting hole dimensions comply with NAMUR standards; air supply port dimensions comply with NAMUR standards; bottom mounting hole dimensions comply with ISO 5211 and DIN 3337 standards, making it easy to install solenoid valves, limit switches, and other accessories.
Technical Specifications
| Item | Parameter |
|---|---|
| Product Type | Rack-and-Pinion Pneumatic Actuator |
| Actuation Mode | Quarter-turn, spring-return or double-acting |
| Certification | SIL3, EAC |
| Control Type | On/off, positioning, modulating, ESD emergency shutdown |
| Valve Type | Suitable for ball valves, butterfly valves, plug valves, and any other quarter-turn valves |
| Torque | 16 sizes: 11 to 4173 N·m (197 to 36,955 lbf·in) |
| Housing Material | High-strength extruded aluminum alloy, hard-anodized cylinder (salt-spray/corrosion-resistant coating available on request) |
| Torque Characteristic | Constant and linear throughout the full stroke |
| Working Pressure | 2 Bar to 8 Bar |
| Operating Temperature | Standard type: -20°C to +80°C; Low-temperature type: -40°C to +80°C; High-temperature type: -20°C to +150°C |
| Standard Stroke | ±4° adjustment range at the 90° position |

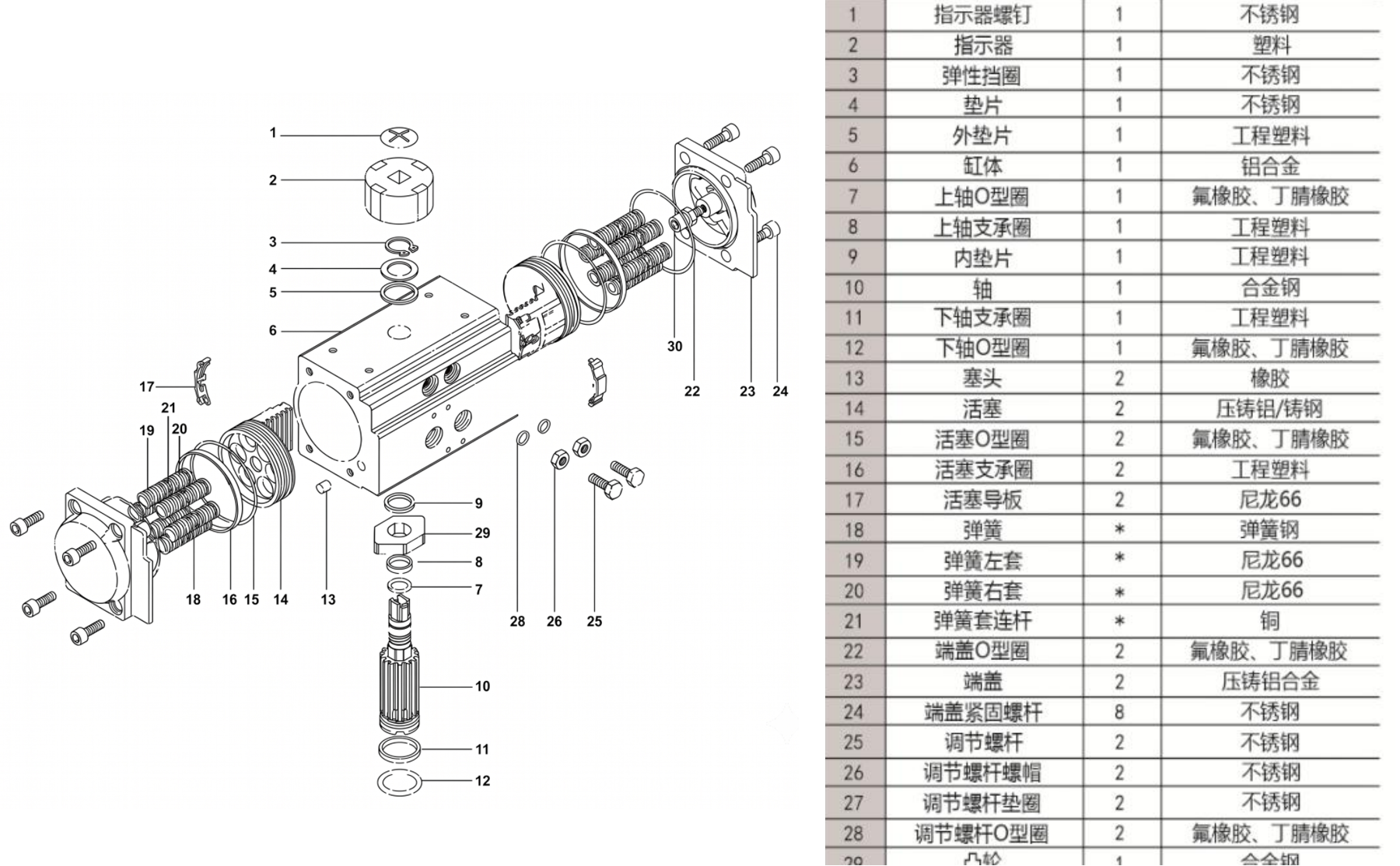

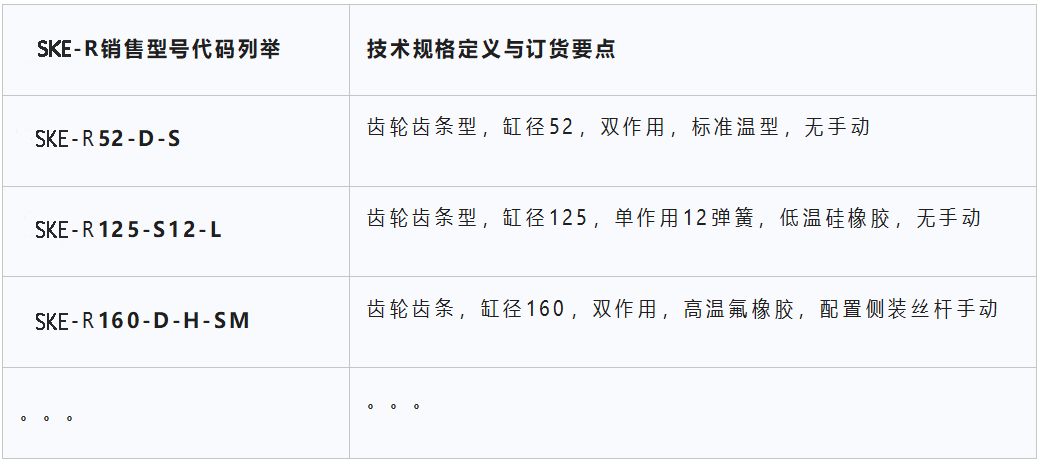

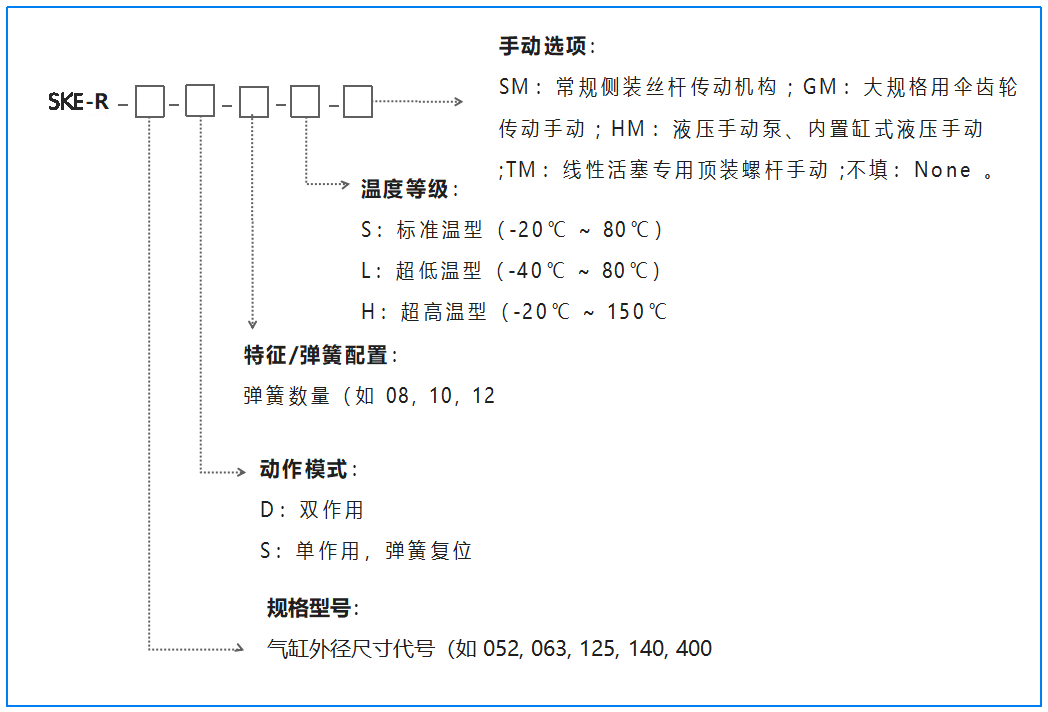

SKE-R Product Configuration Options
