SKE 80GHz Radar Level Sensor: A Preferred Domestic Alternative to VEGA Radar Level Sensors
In the global level measurement market, Germany's VEGA has long held a leading position in high-end radar level sensors thanks to its high precision and stability, and is highly favored by large petrochemical and refining users. However, with the rapid development of China's industrial automation instrumentation technology, Shaanxi SKE Electronics Technology Co., Ltd. ("SKE Electronics") has, with its independently developed 80GHz radar level sensor, demonstrated performance matching VEGA's in level measurement applications involving confined spaces and strong interference — making it a preferred domestic alternative to VEGA radar level sensors.
I. The Rise of a Domestic High-End Level Measurement Brand — An Introduction to SKE Electronics
Since its founding in 2013, SKE Electronics has focused on the R&D and manufacturing of next-generation ultrasonic and radar level measurement instruments, becoming a benchmark enterprise in China's liquid and solid level measurement field. The company's core team comes from renowned institutions such as Northwestern Polytechnical University and the National University of Defense Technology, with deep expertise in sonar and millimeter-wave radar technology. With its independently developed 80GHz millimeter-wave radar chip technology and a full range of industrial application solutions, SKE Electronics has successfully broken the long-standing monopoly of foreign brands in this field.
SKE Electronics' radar level sensor product line is known for its high precision, high stability, and high reliability, and is widely used in the petroleum, chemical, power, food, and pharmaceutical industries. It maintains stable, reliable measurement output even under complex conditions such as steam, foam, and dust. As a National High-Tech Enterprise and Gazelle Enterprise, SKE Electronics is a qualified supplier to PetroChina and Sinopec, with products and business reaching more than 20 countries and regions.
II. Performance Comparison: SKE Radar Level Sensor vs. VEGA Radar Level Sensor

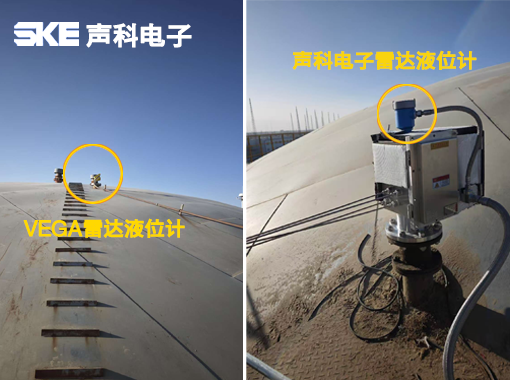

At a refining company, the customer had long used a VEGA radar level sensor, but after extended operation it began experiencing signal jumps in the level measurement, causing unstable on-site level monitoring and an urgent need for a reliable alternative. After contacting SKE Electronics, the customer specified a clear requirement: with other equipment already installed inside the explosion-proof enclosure, a high-precision radar level meter needed to be installed in an extremely limited space.

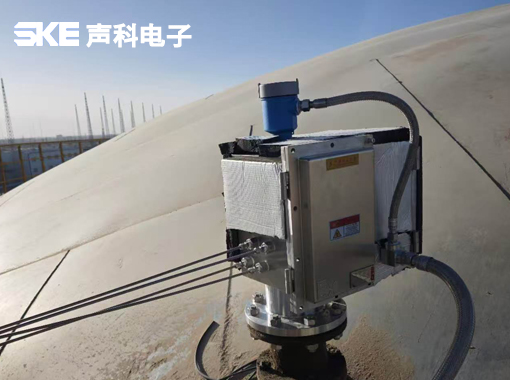

Given these complex conditions, SKE's technical team recommended the SKE SK-R800 radar level sensor, configured with a G1 thread connection and a 150 mm waveguide — a compact solution. This not only solved the installation challenge in the confined space but also ensured high-precision measurement while allowing the other equipment inside the explosion-proof enclosure to continue operating normally. The core performance comparison between SKE's radar level sensor and the VEGA radar level c is as follows:
| Item | VEGA Radar Level Sensor | SKE 80GHz Radar Level Sensor | Comparative Analysis |
|---|---|---|---|
| Measurement frequency | 80GHz | 80GHz | Same frequency, high-precision measurement |
| Beam angle | ≤3.5° | <3.5° / 2.9° / 1.9° | Narrower beam, stronger interference resistance |
| Measurement accuracy | ±2mm | ±2mm | Comparable accuracy, industrial-grade reliability |
| Installation | Standard flange/thread | G1 thread + 150mm waveguide | Compact design, well-suited to confined spaces |
| Interference resistance | High | Higher | Waveguide structure effectively suppresses steam, agitation, and other interference |
| Long-term stability | Signal jumps after extended operation | Stable echo, smooth data | Proprietary chip + waveguide technology, longer service life |
| Price | High | Low | Clear cost advantage |
| After-sales service | Germany-based and agents | Fast local response in China | Localized service, lower maintenance costs |
This comparison shows that SKE's radar level sensor is fully capable of serving as a domestic alternative to VEGA's radar level sensor. In particular, in enclosed, confined refining applications with complex interference, its waveguide structure provides clear advantages over conventional radar in terms of space adaptability and signal stability.
III. Application Advantages of SKE Radar in Refining Units
Refining units impose extremely demanding requirements on level measurement, which must satisfy the following conditions:
Adaptability to confined spaces: refining sites are densely packed with piping and equipment, leaving very limited installation space. SKE's radar level sensor uses a G1 thread connection and a 150mm waveguide design, with a compact antenna and flexible installation, allowing convenient mounting in confined spaces such as inside explosion-proof enclosures without affecting the normal operation of other equipment.
High precision and signal stability: after extended operation, the VEGA radar level sensor experienced signal jump issues. SKE's radar uses 80GHz Frequency Modulated Continuous Wave (FMCW) technology and a proprietary CMOS silicon-based radar chip, with a beam angle of less than 3.5°, highly concentrated energy, and a stable signal propagation path — effectively avoiding the signal jump problems that conventional radar experiences under complex conditions.
Interference resistance: refining units are often accompanied by steam, foam, and agitation interference. The waveguide-type measurement approach uses a waveguide rod plus wave-focusing lens structure, so the radar wave travels along the waveguide unaffected by obstacles or steam inside the tank, producing a clean echo signal and stable, reliable measurement data.
Non-contact measurement: avoids damage from scaling, corrosion, or high temperatures, reducing maintenance frequency and extending equipment service life.

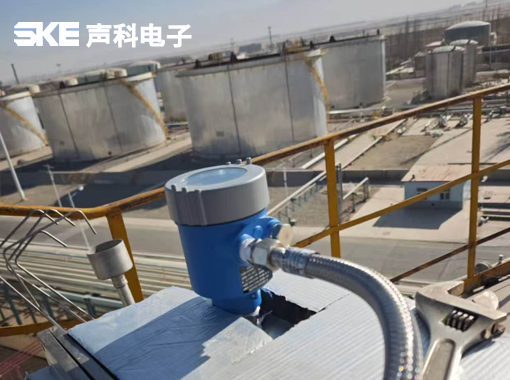

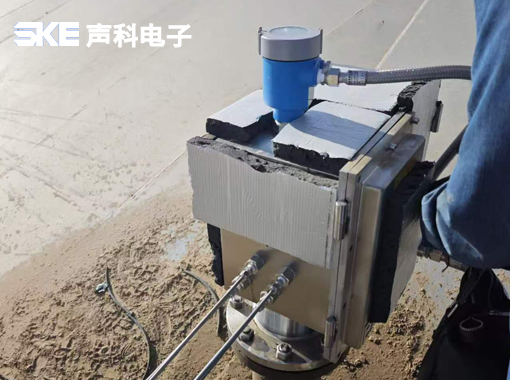

In the actual application at the refining company, after replacing the VEGA radar level sensor with SKE's radar level sensor, the signal jump problem was completely eliminated, level measurement data became stable and reliable, and overall system stability improved significantly — earning high praise from the customer. At the same time, the compact G1 thread installation made full use of the space inside the explosion-proof enclosure, perfectly meeting the customer's special requirement for installation in a confined space.
IV. Outperforming Low-End Brands, On Par with VEGA
There are many low-end radar level sensor brands on the market that typically use low-frequency radar or crude horn-lens designs. While inexpensive, they perform unreliably under complex conditions such as high temperature, high pressure, steam, and confined spaces, and are prone to signal jumps, measurement deviation, and even equipment damage.
In contrast, SKE's radar level sensor — with its 80GHz high-frequency millimeter-wave radar, proprietary core chip, compact waveguide design, and intelligent echo-processing algorithms — not only rivals VEGA's radar level sensor in accuracy and reliability, but also offers a significant price advantage, along with comprehensive localized technical support and rapid after-sales service, truly setting a benchmark for domestic high-end instrumentation.
Notably, among domestic manufacturers of similar products, SKE's 80GHz radar level sensor stands out for its fully self-developed hardware and software system and waveguide measurement approach, achieving world-class performance both in adaptability to confined spaces and in long-term operating stability.
V. Summary
The application case at the refining company demonstrates the following:
SKE's radar level sensor fully matches VEGA's radar level sensor in high-precision level measurement, and effectively resolves the signal jump problem that occurs after extended operation;
Its compact waveguide design (G1 thread, 150mm waveguide) effectively solves the installation challenge in enclosed, confined spaces without affecting the normal operation of other equipment inside the explosion-proof enclosure;
It offers a clear price advantage over low-end brands, with outstanding cost-effectiveness;
Its high interference resistance, non-contact measurement, stable echo output, and localized after-sales service meet the application needs of complex industrial conditions in refining, petrochemicals, and similar industries;
As a representative of domestic high-end level measurement brands, SKE Electronics is steadily becoming a trusted domestic alternative in the global high-end level measurement field.
Whether in refining units or complex conditions such as chemical storage tanks and reactors, SKE's radar level sensor is a reliable, efficient, and cost-effective choice. For enterprise customers seeking an alternative to VEGA radar level sensors, choosing SKE means a dual guarantee of performance and cost, as well as trust in the strength of domestic high-end instrumentation technology.
相关资讯

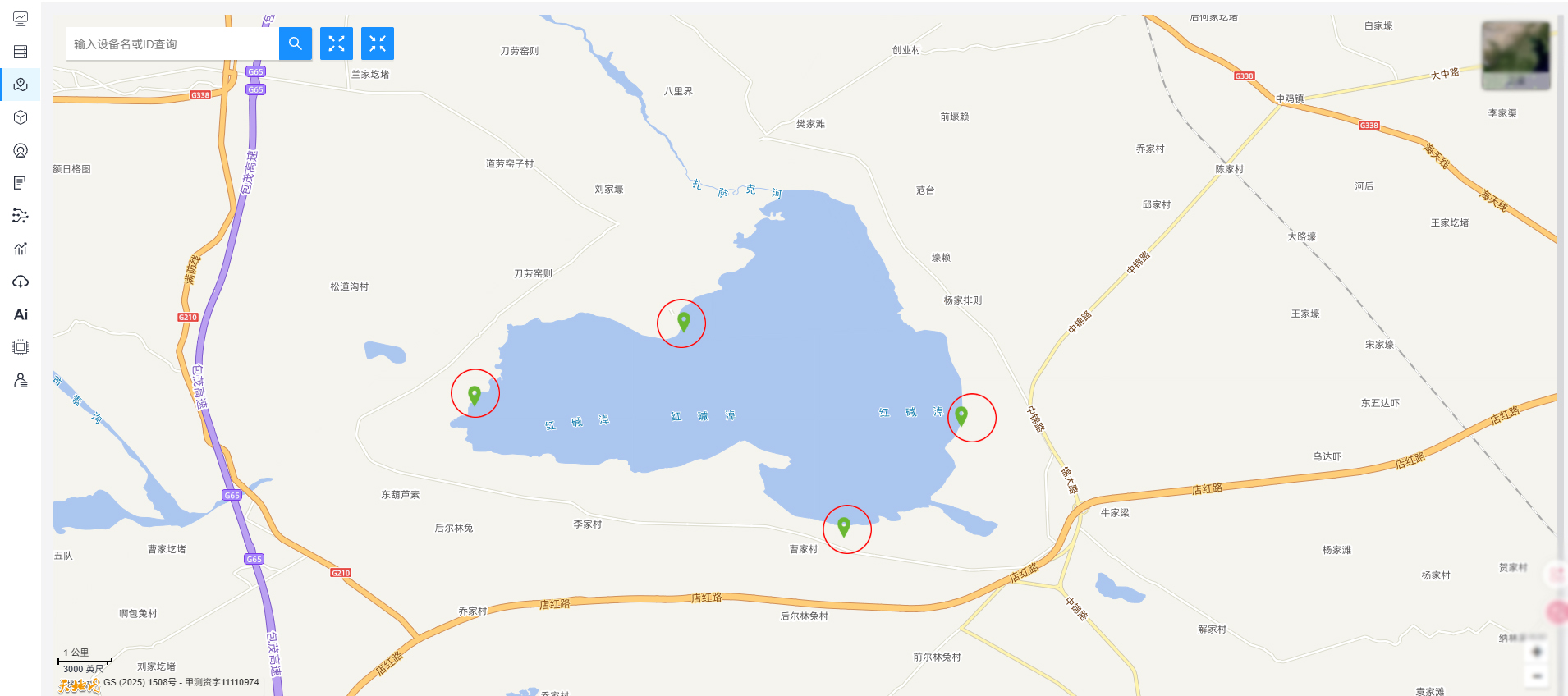

SKE Electronics SK-R800E Series 80GHz Radar Water Level Sensor: Application in Smart Lake Water Leve
